Take A New Look At CSS Shapes




Take A New Look At CSS Shapes

Rachel Andrew



CSS Shapes Level 1 has been available in Chrome and Safari for a number of years, however, this week it ships in a production version of Firefox with the release of Firefox 62 — along with a very nice addition to the Firefox DevTools to help us work with Shapes. In this article, I’ll take a look at some of the things you can do with CSS Shapes. Perhaps it’s time to consider adding some curves to your designs?

What Are CSS Shapes?

The CSS Shapes specification Level 1 defines three new properties:

  • shape-outside
  • shape-image-threshold
  • shape-margin

The purpose of this specification is to allow content to flow around a non-rectangular shape, something which is quite unusual on our boxy web. There are a few different ways to create shapes, which we will have a look at in this tutorial. We will also have a look at the Shape Path Editor, available in Firefox, as it can help you to easily understand the shapes on your page and work with them.

In the current specification, shapes can only be applied to a float, so any shapes example needs to start with a floated element. In the example below, I have a PNG image with a transparent background in which I have floated the image left. The text that follows the image now flows around the right and bottom of my image.

What I would like to happen is for my content to follow the shape of the opaque part of the image, rather than follow the line of the physical image file. To do this, I use the shape-outside property, with the value being the URL of my image. I’m using the actual image file to create a path for the content to flow around.

See the Pen Smashing Shapes: image by Rachel Andrew (@rachelandrew) on CodePen.

Note that your image needs to be CORS compatible, so hosted on the same server as the rest of your content or sending the correct headers if hosted on a CDN. Browser DevTools will usually tell you if your image is being blocked due to CORS.

This method of creating shapes uses the alpha channel of the image to create the shape, as we have a shape with a fully transparent area, then all we need do is pass the URL of the image to shape-outside and the shape path follows the line of the fully opaque area.

Creating A Margin

To push the line of the text away from the image we can use the shape-margin property. This creates a margin between the line of the shape and the content running alongside it.

See the Pen Smashing Shapes: shape-margin by Rachel Andrew (@rachelandrew) on CodePen.

Using Generated Content For Our Shape

In the case above, we have the image displayed on the page and then the text curved around it. However, you could also use an image as the path for the shape in order to create a curved text effect without also including the image on the page. You still need something to float, however, and so for this, we can use Generated Content.

See the Pen Smashing Shapes: generated content by Rachel Andrew (@rachelandrew) on CodePen.

In this example, we have inserted some generated content, floated it left, given it a width and a height and then used shape-outside with our image just as before. We then get a curved line against the whitespace, but no visible image.

Using A Gradient For Our Shape

A CSS gradient is just like an image, which means we can use a gradient to create a shape, which can make for some interesting effects. In this next example, I have created a gradient which goes from blue to transparent; your gradient will need to have a transparent or semi-transparent area in order to use shapes. Once again, I have used generated content to add the gradient and am then using the gradient in the value for shape-outside.

Once the gradient becomes fully transparent, then the shape comes into play, and the content runs along the edge of the gradient.

See the Pen Smashing Shapes: gradients by Rachel Andrew (@rachelandrew) on CodePen.

Using shape-image-threshold To Position Text Over A Semi-Opaque Image

So far we have looked at using a completely transparent part of an image or of a gradient in order to create our shape, however, the third property defined in the CSS Shapes specification means that we can use images or gradients with semi-opaque areas by setting a threshold. A value for shape-image-threshold of 1 means fully opaque while 0 means fully transparent.

A gradient like our example above is a great way to see this in action as we can change the shape-image-threshold value and move the line along which the text falls to more opaque areas or more transparent areas. This property works in exactly the same way with an image that has an alpha channel yet is not fully transparent.

See the Pen Smashing Shapes: shape-image-threshold by Rachel Andrew (@rachelandrew) on CodePen.

This method of creating shapes from images and gradients is — I think — the most straightforward way of creating a shape. You can create a shape as complex as you need it to be, in the comfort of a graphics application and then use that to define the shape on your page. That said, there is another way to create our shapes, and that’s by using Basic Shapes.

CSS Shapes With Basic Shapes

The Basic Shapes are a set of predefined shapes which cover a lot of different types of shapes you might want to create. To use a basic shape, you use the basic shape type as a value for shape-outside. This type uses functional notation, so we have the name of the shape followed by brackets (inside which are some values for our shape).

The options that you have are the following:

  • inset()
  • circle()
  • ellipse()
  • polygon()

We will take a look at the circle() type first as we can use this to understand some useful things which apply to all shapes which use the basic shape type. We will also have a look at the new tools in Firefox for inspecting these shapes.

In the example below, I am creating the most simple of shapes: a circle using shape-outside: circle(50%). I’m using generated content again, and I have given the box a background color, and also added a margin, border, and padding to help highlight some of the concepts of using CSS Shapes. You can see in the example that the circle is created centered on the box; this is because I have given the circle a value of 50%. That value is the <shape-radius> which can be a length or a percentage. I’ve used a percentage so that the radius is half of the size of my box.

See the Pen Smashing Shapes: shape-outside: circle() by Rachel Andrew (@rachelandrew) on CodePen.

This is a really good to time have a look at the shape that has been created using the Firefox Shape Path Editor. You can inspect the shape by clicking on the generated content and then clicking the little shape icon next to the property shape-outside; your shape will now highlight.


The shape highlighted with a line


The Shape Path Editor highlights the circle shape (Large preview)

You can see how the circle extends to the edge of the margin on our box. This is because the initial reference box used by our shape is margin-box. You already know something of reference boxes if you have ever added box-sizing: border-box to your CSS. When you do this, you are asking CSS to use the border-box and not the default content-box as the size of elements. In Shapes, we can also change which reference box is used. After any basic shape, add border-box to use the border to define the shape or content-box to use the edge of the content (inside the padding). For example:

.content::before
    content: "";
    width: 150px;
    height: 150px;
    margin: 20px;
    padding: 20px;
    border: 10px solid #FC466B;
    background: linear-gradient(90deg, #FC466B 0%, #3F5EFB 100%);
    float: left;
    circle(50%) content-box;

You will see the circle appear to become much smaller. It is now using the width of the content — in this case the width of the box at 150px — rather than the margin box which includes the padding, border, and margin.


A smaller circle is highlighted


The content-box is the edge of the content of the square we created with our generated content (Large preview)

Inspecting your element in Firefox DevTools will also show you the reference boxes so you can choose which might give you the best result with your particular shape.


Highlights showing the margin, border and padding


Reference boxes highlighted in Firefox (Large preview)

The Position Value

A second value can be passed to circle() which is a position; if you do not pass this value, it defaults to center. However, you can use this value to pull your circle around. In the next example, I have positioned the circle by using shape-outside(50% at 30%); this changes where the center of the circle is positioned.

See the Pen Smashing Shapes: circle() with position by Rachel Andrew (@rachelandrew) on CodePen.

clip-path

Something useful to know is that the same <basic-shape> values can be used as a value for clip-path. This means that after creating a shape, you can clip away the image or background color that extends outside of the shape. In the example below, I am going to do this with our example gradient background, so that we end up with a circle that has text curved around from our square box.

See the Pen Smashing SHapes: circle() with clip-path by Rachel Andrew (@rachelandrew) on CodePen.

All of the above concepts can be applied to our other basic shapes. Now let’s have a quick look at how they work.

inset()

The inset() value defines a rectangle. This might not seem very useful as a float is a rectangle, however, this value means that you can inset the content wrapping your shape. It takes four values for top, right, bottom, and left plus a final value which defines a border radius.

In the example below, I am using the values to inset the content on the right and bottom of the floated image, plus adding a border radius around which my content will wrap using shape-outside: inset(0 30px 100px 0 round 40px). You can see how the content is now over the background color of the box:

See the Pen Smashing Shapes: inset() by Rachel Andrew (@rachelandrew) on CodePen.

ellipse()

An ellipse is a squashed circle and as such needs two radii for x and y (in that order). You can then push the ellipse around just as with circle using the position value. In the example below, I am creating an ellipse and then using clip-path with the same values to remove the content outside of my shape.

See the Pen Smashing Shapes: ellipse() by Rachel Andrew (@rachelandrew) on CodePen.

In the above example, I also used shape-margin to demonstrate how we can use this property as with our image generated shapes to push the content away.

polygon()

Creating polygon shapes gives us the most flexibility, as our shapes can be created with three or more points. The value passed to the polygon needs to be three or more pairs of values which represent coordinates.

It is here where the Firefox tools become really useful as we can use them to help create our polygon. In the below example, I have created a polygon with four points. In the Firefox DevTools, you can double-click on any line to create a new point, and double-click again to remove it. Once you have created a polygon that you are happy with, you can then copy the value out of DevTools for your CSS.

See the Pen Smashing Shapes: polygon() by Rachel Andrew (@rachelandrew) on CodePen.

Fallbacks

As CSS Shapes are applied to a float, in many cases the fallback is that instead of seeing the content wrap around a shape, the content will wrap around a floated element (in the way that content has always wrapped around floats). Browsers ignore properties they do not understand, so if they don’t understand Shapes, it doesn’t matter that the shape-outside property is there.

Where you should take care would be in any situation where not having shapes could mean that content overlaid an area which made it difficult to read. Perhaps you are using Shapes to push content away from a busy area of a background image, for example. In that case, you should first make sure that your content is usable for the non-Shapes people, then use Feature Queries to check for support of shape-outside and overwrite that CSS and apply the shape. For example, you could use a margin to push the content away for non-Shapes visitors and remove the margin inside your feature query.

.content
    margin-left: 120px;


@supports (shape-outside: circle())
    .content
        margin-left: 0;
        /* add the rest of your shapes CSS here */


}

With Firefox releasing their support we now only have one main browser without support for Shapes — Edge. If you want to see Shapes support across the board you could go and vote for the feature here, and see if we can encourage the implementation of the feature in Edge.

Find Out More About CSS Shapes

In this article, I’ve tried to give a quick overview of some of the interesting things that are possible with CSS Shapes. For a more in-depth look at each feature, check out the Guides to CSS Shapes over at MDN. You can also read a guide to the Shape Path Editor in Firefox.

Smashing Editorial
(il)


Link to article –

Take A New Look At CSS Shapes

Thumbnail

Everything You Need To Know About Alignment In Flexbox




Everything You Need To Know About Alignment In Flexbox

Rachel Andrew



In the first article of this series, I explained what happens when you declare display: flex on an element. This time we will take a look at the alignment properties, and how these work with Flexbox. If you have ever been confused about when to align and when to justify, I hope this article will make things clearer!

History Of Flexbox Alignment

For the entire history of CSS Layout, being able to properly align things on both axes seemed like it might truly be the hardest problem in web design. So the ability to properly align items and groups of items was for many of us the most exciting thing about Flexbox when it first started to show up in browsers. Alignment became as simple as two lines of CSS:

See the Pen Smashing Flexbox Series 2: center an item by Rachel Andrew (@rachelandrew) on CodePen.

The alignment properties that you might think of as the flexbox alignment properties are now fully defined in the Box Alignment Specification. This specification details how alignment works across the various layout contexts. This means that we can use the same alignment properties in CSS Grid as we use in Flexbox — and in future in other layout contexts, too. Therefore, any new alignment capability for flexbox will be detailed in the Box Alignment specification and not in a future level of Flexbox.

The Properties

Many people tell me that they struggle to remember whether to use properties which start with align- or those which start with justify- in flexbox. The thing to remember is that:

  • justify- performs main axis alignment. Alignment in the same direction as your flex-direction
  • align- performs cross-axis alignment. Alignment across the direction defined by flex-direction.

Thinking in terms of main axis and cross axis, rather than horizontal and vertical really helps here. It doesn’t matter which way the axis is physically.

Main Axis Alignment With justify-content

We will start with the main axis alignment. On the main axis, we align using the justify-content property. This property deals with all of our flex items as a group, and controls how space is distributed between them.

The initial value of justify-content is flex-start. This is why, when you declare display: flex all your flex items line up against the start of the flex line. If you have a flex-direction of row and are in a left to right language such as English, then the items will start on the left.


The items are all lined up in a row starting on the left


The items line up to the start (Large preview)

Note that the justify-content property can only do something if there is spare space to distribute. Therefore if you have a set of flex items which take up all of the space on the main axis, using justify-content will not change anything.


The container is filled with the items


There is no space to distribute (Large preview)

If we give justify-content a value of flex-end then all of the items will move to the end of the line. The spare space is now placed at the beginning.


The items are displayed in a row starting at the end of the container — on the right


The items line up at the end (Large preview)

We can do other things with that space. We could ask for it to be distributed between our flex items, by using justify-content: space-between. In this case, the first and last item will be flush with the ends of the container and all of the space shared equally between the items.


Items lined up left and right with equal space between them


The spare space is shared out between the items (Large preview)

We can ask that the space to be distributed around our flex items, using justify-content: space-around. In this case, the available space is shared out and placed on each side of the item.


Items spaced out with even amounts of space on each side


The items have space either side of them (Large preview)

A newer value of justify-content can be found in the Box Alignment specification; it doesn’t appear in the Flexbox spec. This value is space-evenly. In this case, the items will be evenly distributed in the container, and the extra space will be shared out between and either side of the items.


Items with equal amounts of space between and on each end


The items are spaced evenly (Large preview)

You can play with all of the values in the demo:

See the Pen Smashing Flexbox Series 2: justify-content with flex-direction: row by Rachel Andrew (@rachelandrew) on CodePen.

These values work in the same way if your flex-direction is column. You may not have extra space to distribute in a column however unless you add a height or block-size to the flex container as in this next demo.

See the Pen Smashing Flexbox Series 2: justify-content with flex-direction: column by Rachel Andrew (@rachelandrew) on CodePen.

Cross Axis Alignment with align-content

If you have added flex-wrap: wrap to your flex container, and have multiple flex lines then you can use align-content to align your flex lines on the cross axis. However, this will require that you have additional space on the cross axis. In the below demo, my cross axis is running in the block direction as a column, and I have set the height of the flex container to 60vh. As this is more than is needed to display my flex items I have spare space vertically in the container.

I can then use align-content with any of the values:

See the Pen Smashing Flexbox Series 2: align-content with flex-direction: row by Rachel Andrew (@rachelandrew) on CodePen.

If my flex-direction were column then align-content would work as in the following example.

See the Pen Smashing Flexbox Series 2: align-content with flex-direction: column by Rachel Andrew (@rachelandrew) on CodePen.

As with justify-content, we are working with the lines as a group and distributing the spare space.

The place-content Shorthand

In the Box Alignment, we find the shorthand place-content; using this property means you can set justify-content and align-content at once. The first value is for align-content, the second for justify-content. If you only set one value then both values are set to that value, therefore:

.container
    place-content: space-between stretch;

Is the same as:

.container
    align-content: space-between;
    justify-content: stretch;

If we used:

.container
    place-content: space-between;

This would be the same as:

.container
    align-content: space-between;
    justify-content: space-between;

Cross Axis Alignment With align-items

We now know that we can align our set of flex items or our flex lines as a group. However, there is another way we might wish to align our items and that is to align items in relationship to each other on the cross axis. Your flex container has a height. That height might be defined by the height of the tallest item as in this image.


The container height is tall enough to contain the items, the third item has more content


The container height is defined by the third item (Large preview)

It might instead be defined by adding a height to the flex container:

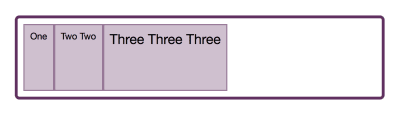

The container height is taller than needed to display the items


THe height is defined by a size on the flex container (Large preview)

The reason that flex items appear to stretch to the size of the tallest item is that the initial value of align-items is stretch. The items stretch on the cross access to become the size of the flex container in that direction.

Note that where align-items is concerned, if you have a multi-line flex container, each line acts like a new flex container. The tallest item in that line would define the size of all items in that line.

In addition to the initial value of stretch, you can give align-items a value of flex-start, in which case they align to the start of the container and no longer stretch to the height.


The items are aligned to the start


The items aligned to the start of the cross axis (Large preview)

The value flex-end moves them to the end of the container on the cross axis.


Items aligned to the end of the cross axis


The items aligned to the end of the cross axis (Large preview)

If you use a value of center the items all centre against each other:

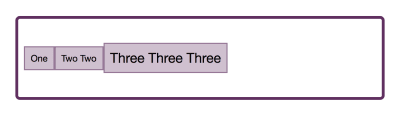

The items are centered


Centering the items on the cross axis (Large preview)

We can also do baseline alignment. This ensures that the baselines of text line up, as opposed to aligning the boxes around the content.


The items are aligned so their baselines match


Aligning the baselines (Large preview)

You can try these values out in the demo:

See the Pen Smashing Flexbox Series 2: align-items by Rachel Andrew (@rachelandrew) on CodePen.

Individual Alignment With align-self

The align-items property means that you can set the alignment of all of the items at once. What this really does is set all of the align-self values on the individual flex items as a group. You can also use the align-self property on any individual flex item to align it inside the flex line and against the other flex items.

In the following example, I have used align-items on the container to set the alignment for the group to center, but also used align-self on the first and last items to change their alignment value.

See the Pen Smashing Flexbox Series 2: align-self by Rachel Andrew (@rachelandrew) on CodePen.

Why Is There No justify-self?

A common question is why it is not possible to align one item or a group of the items on the main axis. Why is there no -self property for main axis alignment in Flexbox? If you think about justify-content and align-content as being about space distribution, the reason for their being no self-alignment becomes more obvious. We are dealing with the flex items as a group, and distributing available space in some way — either at the start or end of the group or between the items.

If might be also helpful to think about how justify-content and align-content work in CSS Grid Layout. In Grid, these properties are used to distribute spare space in the grid container between grid tracks. Once again, we take the tracks as a group, and these properties give us a way to distribute any extra space between them. As we are acting on a group in both Grid and Flexbox, we can’t target an item on its own and do something different with it. However, there is a way to achieve the kind of layout that you are asking for when you ask for a self property on the main axis, and that is to use auto margins.

Using Auto Margins On The Main Axis

If you have ever centered a block in CSS (such as the wrapper for your main page content by setting a margin left and right of auto), then you already have some experience of how auto margins behave. A margin set to auto will try to become as big as it can in the direction it has been set in. In the case of using margins to center a block, we set the left and right both to auto; they each try and take up as much space as possible and so push our block into the center.

Auto margins work very nicely in Flexbox to align single items or groups of items on the main axis. In the next example, I am achieving a common design pattern. I have a navigation bar using Flexbox, the items are displayed as a row and are using the initial value of justify-content: start. I would like the final item to be displayed separated from the others at the end of the flex line — assuming there is enough space on the line to do so.

I target that item and give it a margin-left of auto. This then means that the margin tries to get as much space as possible to the left of the item, which means the item gets pushed all the way over to the right.

See the Pen Smashing Flexbox Series 2: alignment with auto margins by Rachel Andrew (@rachelandrew) on CodePen.

If you use auto margins on the main axis then justify-content will cease to have any effect, as the auto margins will have taken up all of the space that would otherwise be assigned using justify-content.

Fallback Alignment

Each alignment method details a fallback alignment, this is what will happen if the alignment you have requested can’t be achieved. For example, if you only have one item in a flex container and ask for justify-content: space-between, what should happen? The answer is that the fallback alignment of flex-start is used and your single item will align to the start of the flex container. In the case of justify-content: space-around, a fallback alignment of center is used.

In the current specification you can’t change what the fallback alignment is, so if you would prefer that the fallback for space-between was center rather than flex-start, there isn’t a way to do that. There is a note in the spec which says that future levels may enable this.

Safe And Unsafe Alignment

A more recent addition to the Box Alignment specification is the concept of safe and unsafe alignment using the safe and unsafe keywords.

With the following code, the final item is too wide for the container and with unsafe alignment and the flex container on the left-hand side of the page, the item becomes cut off as the overflow is outside the page boundary.

.container
    display: flex;
    flex-direction: column;
    width: 100px;
    align-items: unsafe center;


.item:last-child
    width: 200px;

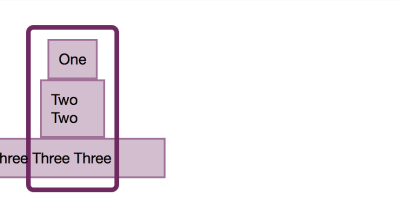

The overflowing item is centered and partly cut off


Unsafe alignment will give you the alignment you asked for but may cause data loss (Large preview)

A safe alignment would prevent the data loss occurring, by relocating the overflow to the other side.

.container
    display: flex;
    flex-direction: column;
    width: 100px;
    align-items: safe center;


.item:last-child
    width: 200px;

The overflowing item overflows to the right


Safe alignment tries to prevent data loss (Large preview)

These keywords have limited browser support right now, however, they demonstrate the additional control being brought to Flexbox via the Box Alignment specification.

See the Pen Smashing Flexbox Series 2: safe or unsafe alignment by Rachel Andrew (@rachelandrew) on CodePen.

In Summary

The alignment properties started as a list in Flexbox, but are now in their own specification and apply to other layout contexts. A few key facts will help you to remember how to use them in Flexbox:

  • justify- the main axis and align- the cross axis;
  • To use align-content and justify-content you need spare space to play with;
  • The align-content and justify-content properties deal with the items as a group, sharing out space. Therefore, you can’t target an individual item and so there is no -self alignment for these properties;
  • If you do want to align one item, or split a group on the main axis, use auto margins to do so;
  • The align-items property sets all of the align-self values as a group. Use align-self on the flex child to set the value for an individual item.
Smashing Editorial
(il)


See original:

Everything You Need To Know About Alignment In Flexbox

Thumbnail

No Hard Feelings: The Wait For “Hardboiled Web Design” Is Over


Some books deserve a spot at your desk. The brand new Hardboiled Web Design by Andrew Clarke is one of them. In its 5th anniversary edition, Andy explains how you can use HTML/CSS efficiently in responsive design — and how to reduce wasted time in the process with developers, designers and clients. No fluff, no theory — just insights into his own experiences with clients such as ISO and WWF.

A look on the new Hardboiled Web Design Softcover

If you get a printed copy (free worldwide shipping), you’ll get the eBook for free — available in PDF, ePUB, Amazon Kindle. All printed copies will ship from Dec 8th. Softcover, 441 pages. Jump to the table of contents. Proudly published by yours truly Smashing Magazine.

The post No Hard Feelings: The Wait For “Hardboiled Web Design” Is Over appeared first on Smashing Magazine.

View this article –

No Hard Feelings: The Wait For “Hardboiled Web Design” Is Over

Thumbnail

Women In Web Design: Group Interview

A couple of weeks ago we published the article Expert Advice for Students and Young Web Designers, in which we presented a group interview with professional designers and developers. We tried to find answers to questions that are particularly useful and interesting for those just starting to design websites for a living or considering diving into the Web design industry.
In the comments to that article, many readers wished we’d invited more female designers on the panel — in particular because, “There is no way of discerning how the experience of a female designer might differ, simply because there is a complete lack of representation.

Excerpt from:

Women In Web Design: Group Interview
